Used 2009 Jayco Designer 35RLTS

Fifth Wheel

Stock #DES0151

Seguin, TX

CALL FOR MORE INFO @830-463-4300!

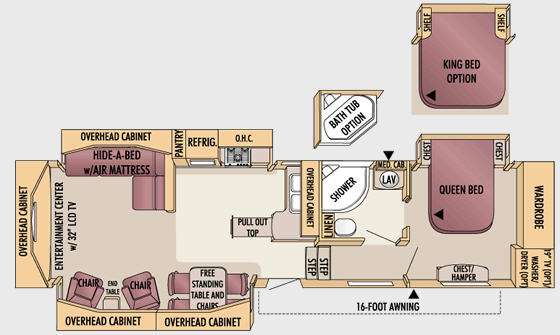

Floorplan - 2009 Jayco Designer 35RLTS

1 of 6

Sleeps 4
3 Slides
Rear Living Area

Front Bedroom

38ft Long
11,410 lbs
Mocha, Slate & Brick

See All Specs

Specifications

Sleeps	4	Slides	3
Length	38 ft 2 in	Ext Height	13 ft 1 in
Int Height	6 ft 5 in	Interior Color	Mocha, Slate & Brick
Hitch Weight	2350 lbs	GVWR	15800 lbs
Dry Weight	11410 lbs	Cargo Capacity	4390 lbs
Fresh Water Capacity	87 gals	Grey Water Capacity	87 gals
Black Water Capacity	52 gals	Tire Size	16
VIN	SZ0151

Features

Standard Features (2009)

Exterior Equipment

12V hitch light
16" radial tires
Entrance door is fiberglass and radius cornered w/screen door
Outdoor media center
Galvanized steel wheel wells
ABS fender skirts
Rain guttering, molded w/ drip spouts
Battery box for two batteries
Electric-powered front jacks
E-Z Lube® axles
Caps on front and rear made of fiberglass w/radius corners
Patio light w/inside switch
Sidewall corners radiused at top and bottom
Baggage doors, lockable, insulated and radius-cornered w/heavy-duty grab handles
Ladder to roof
Painted bottom radius skirting
Front jacks w/quick release pins
Street-side utility light
Black-framed, radius-cornered, awning style windows w/tinted safety glass
Store-Galore™ basement storage
Safety glass
Bracket for 50 amp power cord in front basement
Triple retractable main entrance step
L.E.D. taillights

Heat, Power & Water Equipment

12-gal. gas/electric DSI auto-ignition water heater
110V G.F.C.I. protected exterior receptacle
12V electrical system w/110V, 80-amp power converter
Interior Command Center®
50-amp quick-connect power cord
50-amp electric service
A/C chill grill
Vents are pre-wired for attic fan in bedroom and living room
Uni-Dock™ utility center in front basement area
12V demand water pump
Monitor panel for all systems
Furnace with wall thermostat, auto ignition
Battery disconnect switch
Hook-up for city water
In-floor ducted heat
Holding and fresh water tanks made of rotocast design
Double 30-lb. propane gas bottles, w/regulator (in side compartment on sliding tray)
Prep for washer/dryer
Water heater bypass system
Water system winterization kit
Prep for solar panel

Interior Equipment

Cable TV hook-up w/RG6 coax cabling
Ceiling fan w/light
Crank-up TV antenna w/signal booster
Decorative oil-rubbed bronze lighting throughout
Decorative throw pillows for sofa hide-a-bed
High-intensity 12V lighting package
Pleated day/night shades
Entertainment center
SuperSlide™ w/flush floor design
Hide-a-bed sofa (air mattress)
Solid hardwood interior entry grab handle
Linoleum floor in entryway
Overhead cabinetry in slideout room with raised panel doors
Residential-style trim and molding
Rocker recliner(s)
Prep for satellite dish for roof and sidewall
Sliding windows for slidout end walls
Provincial Glazed Maple raised-paneled doors and drawers throughout
Carpeting w/padding throughout unit
Message center
Hardwood cabinet stiles
End table with built-in magazine rack
Ball bearing drawer guides throughout

Kitchen Equipment

Extendable free-standing table w/4 chairs
3 burner range w/9000-BTU SuperBurner™ and piezo igniter
Bi-fold, recessed cover for stove
High-rise single lever faucet w/pull-out sprayer
Silverware drawer, divided for utensils
Paper towel holder
8 cu. ft. refrigerator w/double door
One piece J-Stone™ surface countertop w/integrated deep bowls
Oversized 21" oven
Raised hardwood refrigerator fronts
Microwave oven w/carousel
J-Stone™ cover for sink/cutting board (2)
Fluorescent lighting under cabinet
Wallpaper border
Sponge holder under sink

Construction

I-Class® cambered structural steel I-Beam frames
FRP smooth fiberglass sidewall exteriors
Bead-foam insulation (R-9 in sidewalls, R-25 in roof)
Electric-powered slideout
Hardwood cabinetry crafted w/screwed stile construction
5/8" tongue and groove plywood main floor decking
Welded tubular-aluminum sidewall framework
One-piece, seamless, rubber roof
TuffShell™ vacuum-bond laminated sidewalls
Vacuum-bonded 5" crowned laminated roof
PolyFlex™ one piece underbelly covering
Reflective foil insulation in main and bedroom floor area and all slideout floors
Enclosed, insulated and heated underbelly
Welded aluminum floor studs on 16" centers
Pin box, long

Bedroom Equipment

Bed lifts up easily on struts, 2 ABS storage bins below
Laundry hamper
Accordion-style bedroom door (select models)
Dresser lamp
Queen Bed
Decorative pillows for bed
Quilted bedspread with 2 pillow shams
Dresser drawers, residential style
Decorative headboard
TV cabinet with satellite and cable jacks
Nightstands next to bed

Bathroom Equipment

Radius glass shower door
Oil-rubbed bronze fixtures
Thetford porcelain stool with foot pedal
Fiberglass radius shower
Wall switches for all lights
Adjustable shower head
Ducted heating
Skylight in tub/shower
Toilet paper holder
Towel holder
Window in commode area
Residential medicine cabinet w/mirror
6-panel residential style passage doors
Ducted heating

Safety

Breakaway switch
Lock and dead bolt entrance doors
Fire extinguisher
Propane alarm
Multiple egress windows
Smoke alarm Carbon monoxide detectors
Tinted safety glass windows
Carbon monoxide detectors

Options

Customer Value Package

20" digital LCD TV in bedroom
Deluxe Cloud Ten™ pillowtop mattress (60" x 80")
Foldable, exterior grab handle
Floor mounted safe
Bathroom power vent
8-lug polished aluminum wheels
Multi-Media Premium Sound System™ AM/FM/CD/DVD stereo w/MP3 & iPod® input jack
Water purification system
15,000 BTU central A/C with quick cool feature, louvered directional ceiling vents
Security lights (2)
Outside shower
Spare tire with carrier
Black holding tank sprayer
Decorative fascia board
Central vacuum system
Carefree® Travl'r 12 volt electric patio awning
32" digital LCD TV in living area
MOR/ryde® hub suspension

Options

CSA standards
High-gloss Gel-coat fiberglass sidewall exteriors
Washer/dryer combination
Portable, outside gas grill
Generator prep
Onan® 5500-watt Microlite generator, w/auto changeover (generator prep included)
Carefree® SideOut Kover II awnings for slideouts (3)
2 leather recliners ILO fabric recliners
Fireplace, 5100 BTU
Bike rack
2nd 13,500 BTU A/C in bedroom w/wall thermostat
10 cu. ft. refrigerator
Rear powered roof vent
Front powered roof vent
Front & rear powered roof vent
Convection microwave
2 euro chairs ILO rocker recliners
MOR/ryde® pin box
Remote control front landing gear
Thermal pane tinted safety glass windows
Carefree® SideOut Kover II awnings for slideouts (4)
Satellite kit: tripod, dish, coax cable, electronic satellite finder, installation video
Electric stabilizer jacks
42" LCD HDTV ILO 32"

Please see us for additional features and available options.

All standard features and specifications are subject to change.
